NCP304HSQ27T1G点击型号即可查看芯片规格书
NCP304HSQ27T1G 中文资料规格参数
| 技术参数 | 电源电压(DC) | 800mV (min) |
无卤素状态 | Halogen Free | |
供电电流 | 0.0033 mA | |
阈值电压 | 2.7 V | |
复位电压(Min) | 2.646 V | |
复位电压(Max) | 2.754 V | |
工作温度(Max) | 125 ℃ | |
精度 | 2 % | |
电源电压(Max) | 10 V | |
电源电压(Min) | 0.8 V | |
| 封装参数 | 安装方式 | Surface Mount |
引脚数 | 4 | |
封装 | SC-82-4 | |
| 外形尺寸 | 长度 | 2.2 mm |
宽度 | 1.35 mm | |
高度 | 1 mm | |
封装 | SC-82-4 | |
| 物理参数 | 工作温度 | -40℃ ~ 85℃ (TA) |
| 其他 | 产品生命周期 | Active |
包装方式 | Tape & Reel (TR) | |
制造应用 | Telecom: Line Cards, Modems, Answering Machines, and FAX, Power Fail Indicator, Low Battery Detection, Microprocessor Reset Controller, Battery Backup Detection | |
| 符合标准 | RoHS标准 | RoHS Compliant |
含铅标准 | Lead Free | |
| 海关信息 | ECCN代码 | EAR99 |
NCP304HSQ27T1G 引脚图 | 封装图 | 封装焊盘图

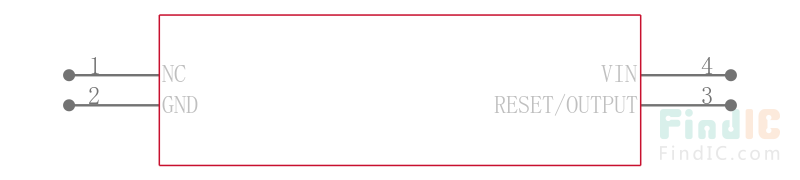

NCP304HSQ27T1G 引脚图

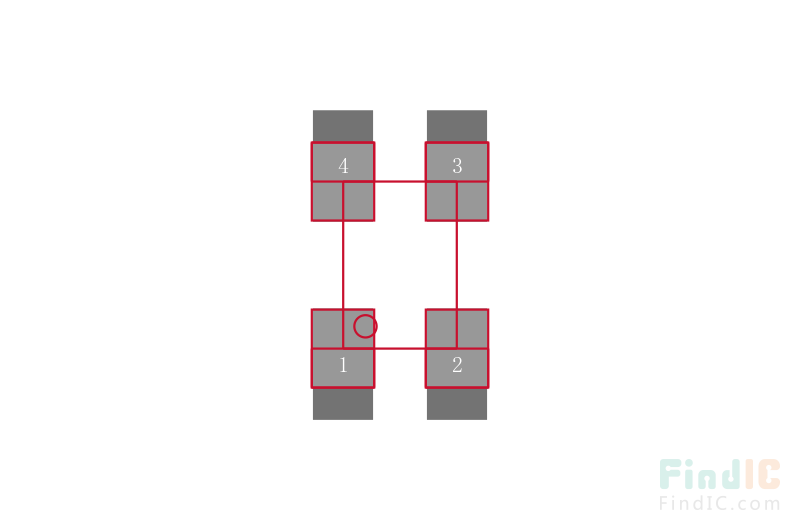

NCP304HSQ27T1G 封装图

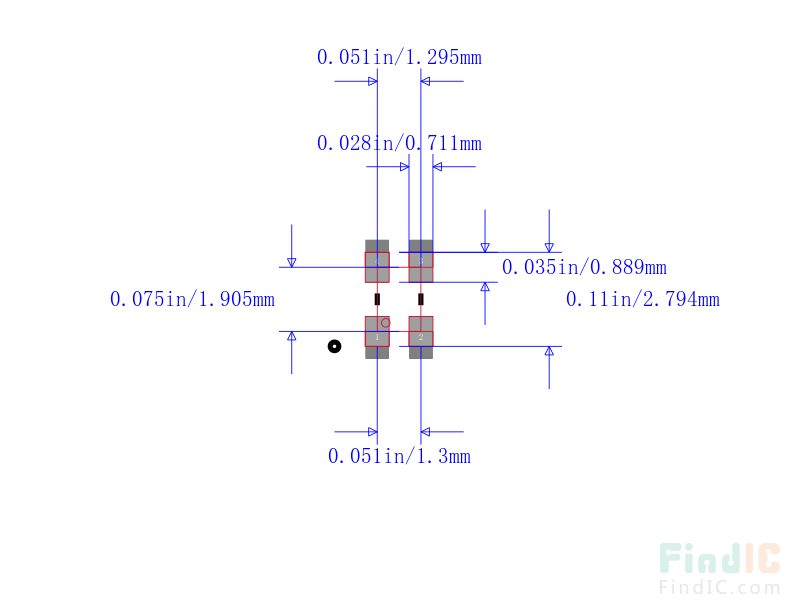

NCP304HSQ27T1G 封装焊盘图
产品概述
NCP304 系列 2.7 V 阈值 10 V 电源电压 电压监控器 检测器 - SC-82AB
微处理器监控和复位电路，On Semiconductor
得捷:IC SUPERVISOR 1 CHANNEL SC82AB
立创商城:NCP304HSQ27T1G
欧时:ON Semiconductor NCP304HSQ27T1G 电压探测器, 2.646V最小复位阈值电压, 用于超低电源电流, 4引脚
艾睿:Voltage Detector 4-Pin(3+Tab) SC-82AB T/R
Allied Electronics:NCP304HSQ27T1G; Voltage Detector; 0.9 -4.9 V; 4-Pin SC-82AB
安富利:Volt Supervisor Detect 4-Pin(3+Tab) SC-82AB T/R
Chip1Stop:Volt Supervisor Detect 4-Pin(3+Tab) SC-82AB T/R
Verical:Voltage Detector 4-Pin(3+Tab) SC-82AB T/R
Win Source:Supervisor Push-Pull, Totem Pole 1 Channel SC-82AB
